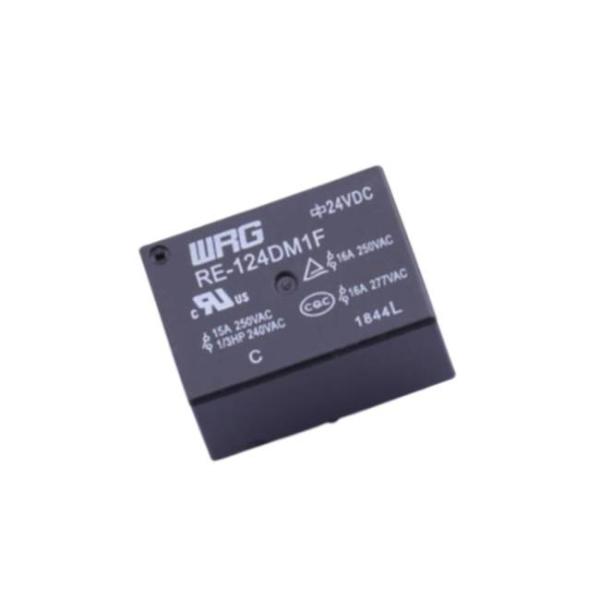

12V 16A DC 24V Normally Open Relay 0.2W SPST RE-124DM1F For Smart Toilet Seat

Product Categories

PCB Mount Relay [85]
Universal Automotive Relay [80]
12V 50A Relay [70]
40A Power Relay [48]
30A Power Relay [53]
20A Power Relay [27]
12V SPST Relay [42]
SPDT Power Relay [60]
Magnetic Latching Relay [16]
AC Power Relay [26]
12V Signal Relay [25]
Solid State Relay [24]
TRIAC Relays [22]
WRG Relay [57]
BaoCheng Relay [60]
Charging Pile Relay [32]

Shenzhen Ketai Electronic Technology Co., Ltd.

Contact Now

12V 16A DC 24V Normally Open Relay 0.2W SPST RE-124DM1F For Smart Toilet Seat

Brand Name : WRG

Model Number : RE-124DM1F

Certification : TUV/CQC/UL

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500k per month

Delivery Time : 4 weeks

Packaging Details : standard or customization

Keyword : 12V SPST Relay

Coil input voltage : DC24V

Coil insulation : Class F

Contact ratings : 15A 250VAC,16A 250VAC,1/3HP 240VAC

Dimension LxWxH(mm) : 23.0x16.1x10.2

Mounting : PCB

Applications : intelligent appliances

Weight : 9g

Contact Now

12V 16A DC 24V Normally Open Relay 0.2W SPST RE-124DM1F For Smart Toilet Seat

12V SPST Relay Description:
RE series power relay, height is shorter than another series relay, especially available to which housing of product is flat shape.Low coil power with 200mW, high sensitivity, pcb mounting, 10A or 16A rated current for options, dielectric withstand voltage 2KV, CQC/TUV/UL is approved, safe and reliable, widely used for smart home appliances, such smart dishwasher, smart socket...

12V SPST Relay Features:
1. short and light.
2. Ag alloy contact material.
3. 0.2W coil power.
4. 2000VAC for dielectric withstand voltage between coil and contact.
5. cULus: E345228/TUV: R50250866/CQC: CQC12002086474 approved.

12V SPST Relay Applications:
intelligent appliances, such as smart toilet seats, and sweeper robots...

12V SPST Relay Specification:

Coil data:
Coil input voltage					5/9/12/18/24VDC
Coil power					200mW
Response voltage					＞75％(Room temp.)
Drog out voltage					＜5％(Room temp.)
Operating time / Release time					Less than 15ms/Less than 5ms
